A 1532 XA EV Charger Tester (Adapter; Load Taking)

Metrel A 1532 XA EVSE Adapter from the A 1532 range also supports load testing, PE open fault, diode fault simulator perfect for testing Electric Vehicle Supply Equipment (EVSE) together with supported METREL installation testers.

Part Number:
A1532 XA

read more



Need Help ? Contact Us Request Demo
Acutest's Price Promise
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support
Request our best price
callback
green arrow



Manufacturer's RRP

£494.00
(£592.80 incl. VAT)
Add To Cart
  • Competitive quote
  • Expert technical advice/demos
  • Trusted aftercare support
Need Help ? Contact Us Request Demo







Product Description

Metrel A 1532 XA EVSE Adapter - For EVSE Electrical Vehicle Supply Tests

Perfect for:

  • EVSE construction and testing
  • EVSE domestic installation testing



The Metrel A 1532 XA EVSE Adapter has been designed for verification of electrical safety and functional testing of EVSE together with supported Metrel installation testers.

Test Mode 3 EV supply equipment with a type 2 connector with ease!

The XA version from the A 1532 series supports 3-phase load testing up to 13 A and different error types, including PE open.

If the adapter is used together with Metrel AutoSequences, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button.

Reporting is easy - create a professional station-based report with MESM.



Metrel A 1532 XA Key Features:

  • Banana socket outputs for connection to a 3-phase installation tester
  • Voltage indicators on EVSE output
  • Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection
  • Control Pilot resistance selector for simulation of electric vehicle status
  • Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE)
  • Type 2 Male Plug connector for connection to EVSE
  • 6 mA EV RCD support
  • Functional tests support*
  • EVSE AUTO SEQUENCE support*
  • MESM report creation**
  • Load testing up to 13 A on socket - 1 phase or on banana sockets - 3 phase
  • Fault simulation of Diode short, PE-CP short and PE open
  • Output BNC connector for CP signal monitoring



* Functional tests and AUTO SEQUENCE are supported only on the MI 3152 EurotestXC and MI 3152 H EurotestXC 2.5 kV testers.
** Report printing is only available via the MESM PC SW.



Metrel A 1532 XA Applications

  • EVSE construction and testing
  • e-Mobility - EVSE domestic installation testing, EVSE periodic inspection, Renewable power and car charging
  • Mobile installations - Vehicles with an on-board generator

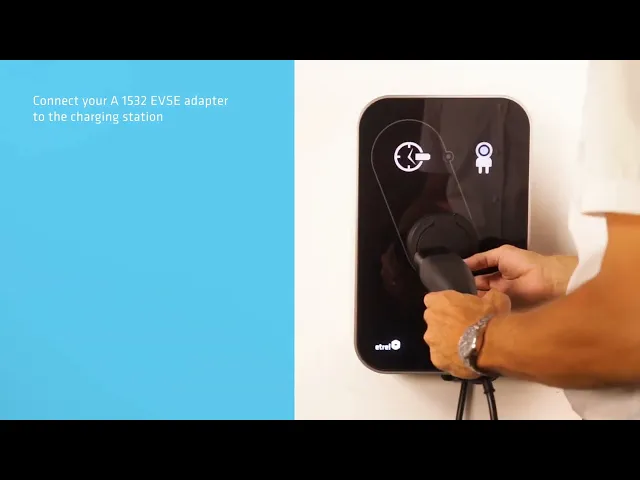

▶ Video: Metrel A 1532 Adaptor Overview

Thumbnail for the Metrel MI 3152 and A 1532 Charging Station Testing video

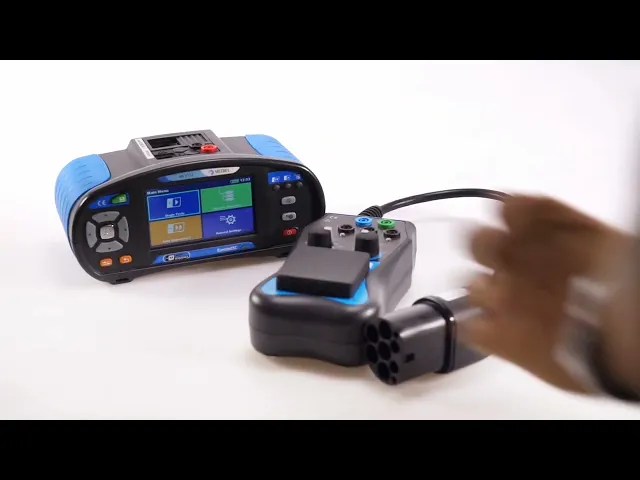

▶ Video: Metrel A 1532 Testing Proceedures

Thumbnail for the Metrel MI 3152 and A 1532 Charging Station Testing video





What comes with the Metrel A 1532 XA EVSE Adapter?

  • A 1532 XA EVSE Adapter
  • Small soft carrying bag
  • Instruction manual



Technical Specification + Data Sheets

Comparison Chart for: Metrel A 1532 XA EV Charger Tester (Adapter; Load Taking)

MI 3132A 1732 A 1632 A 1631A1532 XA A 1532
Electrical Vehicle Mode
EVSE Mode
AUTOSEQUENCES
AUTOSEQUENCE profile
Autosequence programmable
Custom Visual/Functional Inspection
AUTOSEQUENCE EVSEOpt.Opt.
PASS/FAIL System Evaluation
On-site Parameter Settings
Advanced User Interface
Colour display
Touch screen
Adaptable user interface
Graphical Help Menus
Programmable Memory Structure
Multi-level Memory Organiser
SDK support
Upload structure
Upload measurements
Download
Voltage DC
Voltage DC
DC 1000 V
Voltage AC
Frequency
Voltage TRMS
Mains voltageOpt.
AC 750 V
Earth Bond / Continuity
Max Test Current 7 mA 2-wire
Max Test Current 10 mA 2-wire
Max Test Current 100 mA 2-wire
Max Test Current 200 mA 2-wire
Max Test Current 1 A 2-wire
Max Test Current 2 A 2-wire
Max Test Current 10 mA 4-wire
Max Test Current 100 mA 4-wire
Max Test Current 200 mA 4-wire
Max Test Current 1 A 4-wire
Max Test Current 2 A 4-wire
Automatic polarity reversal
Duration timer
Unidirectional/bidirectional mode
Insulation Resistance
Test Voltage 50 V
Test Voltage 100 V
Test Voltage 250 V
Test Voltage 500 VOpt.
Test Voltage 550 V
Test Voltage 1000 VOpt.
Test Voltage 1200 V
Test Voltage 1500 V
Max resistance range 999 MOhmOpt.
Max resistance range 3 GOhm
Test voltage display
Adjustable Test Time
Automatic Discharge
Z Line / Loop Impedance
Zline L-L, L-N Ipsc - 3 WireOpt.
Zloop L-PE, Ipfc - 3 WireOpt.
Zs (rcd) - 3 WireOpt.
RCDOpt.
RCD type AOpt.
RCD type BOpt.
RCD UcOpt.
RCD (t)Opt.
RCD I RampOpt.
RCD AutoOpt.
EV-RCDOpt.
Earth Resistance 3-wireOpt.
EVSE measurements
Proximity pilot 0–32 A
Proximity pilot 0–64 A
Control Pilot states settings
Line impedance for charging station
Fault loop impedance for charging station
Functional test of proximity pilot
Functional test of control pilot
Isolation test for charging station
1-phase charging station testing
1-phase test through socket
3-phase charging station testing
Diode short error simulation
PE open error simulation
CP short error simulation (E state)
Load test up to 13 A
Monitoring of voltage
Monitoring of current
Simulation of external load
Mode 3 EVSE testing
Mode 4 EVSE testing
CCS2 Testing
CHAdeMO Testing
Functional test for DC EVSE
Fault simulation od DC EVSE
Insulation resistance between PE/DC+/DC-
Impedance on DC EVSE
Discharge time on DC EVSE
IMD test on DC EVSE
4-Wire connection points
Automatic R100 insulation measurement
Hand-Held
Security: User Accounts
PASS / FAIL Indicators
Voltage Monitoring
Display (LCD)
Keyboard (QWERTY / Virtual)
Power Supply
Rechargeable Batteries in standard delivery
Battery Powered
Dual Power
Power Supply 115 V (50-60Hz)
Power Supply 230 V (50-60Hz)
Mains Supply / PE Check
Test Lead Compensation
Buzzer
Graphical user interface
High precision resolution mOhm
Communication Port USB
Built-in Bluetooth
Connection to Metrel instruments
Mobile Application (Android)
Memory
microSD memory card
Downloadable
Uploadable
IP protectionIP 54IP 40IP 54 / IP 65IP 54 / IP 65IP 40IP 40
Protection categoryCAT III 1000 VCAT II 300 VCAT II 300 VCAT II 300 V
High altitude protection category (4000 m)
EVSE adapter (A 1832 Mode 3 Charging cable adapter)
Pasive 3-Phase AdapterOpt.
PC Software Package
MESM Compatible
Report creation
Professional reportingOpt.
Battery Charger
EVSE construction and testing
Electrical Vehicles first safety inspection according to UN ECE R100
EVSE domestic installation testing
EVSE periodic inspection
Renewable power and car charging
Vehicles with an on-board generator
Voltage measurements
Frequency measurements
Battery systems
Industrial testing
Standards
Low Voltage Electrical Installation Safety Inspection
Low Voltage Electrical Installation Safety for Contractors and Maintainers
IEC/EN 60364-6
IEC/EN 61557
IEC/EN 60364-7
UN ECE R 100
ISO 6469-3
Electrical Vehicle Supply Equipment Safety
Directive EMC 89/336/EE
IEC/EN 61010
IEC/EN 61010-1
IEC/EN 61010-031
IEC/EN 61326
IEC/EN 61326-1
